Sintered SiC Heat Exchanger Tubes
Hexoloy SE silicon carbide heat exchanger tubes provide the most reliable choice for high-temperature, high-pressure chemical processing applications.

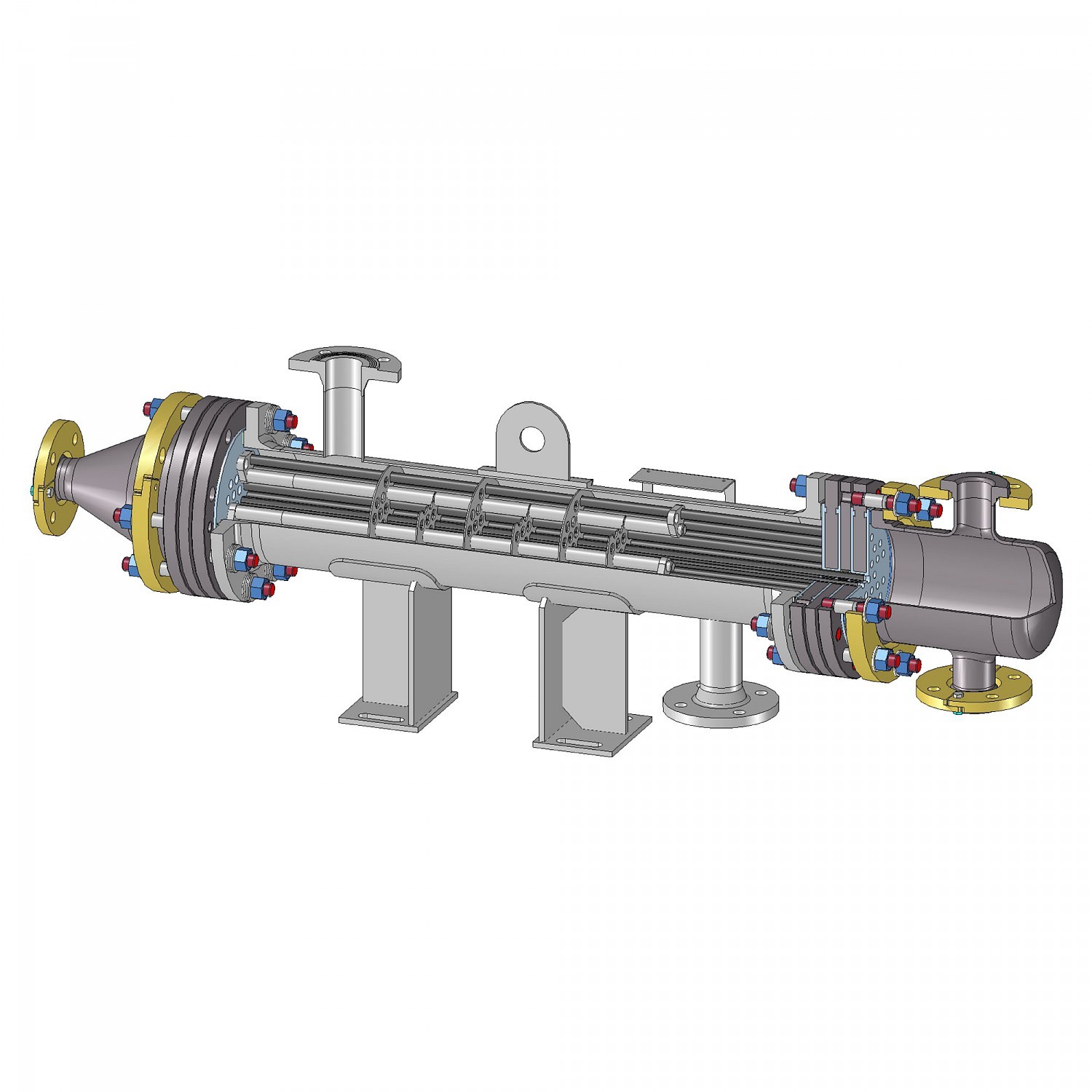

Upgrade your shell or tube heat exchanger system to the industry most high-performance, efficient tubing option
Hexoloy SE heat exchanger tubes are available in outer diameters of 19mm (0.75"), 14mm (0.55") and 12.7mm(0.50") at lengths up to max :4.6 Mtr (15 Ft). Standard Length available is : 4.0 Mtr L
Standard Delivery Time : 10-12 Weeks, subject to Air Shipment of the Cargo.
Also as per specific size,OD required like: 25.5mm & 32 mm,subject to minimum quantity criteria applicable, considering the Special case...
|Material ||Hexoloy ÃÆÆÃââÃÆâÃâÂ® SE SiC |
|Maximum Use Temperature ||1900 ÃÆÆÃââÃÆâÃâÂ°C |
|Flexural Strength (MPa) |
@ Room Temp
|Density (g / cc) ||3.05 |
|Apparent Porosity (%) ||5 - 10 |
|Modulus of Elasticity (GPa) |
|Thermal Conductivity (W/mK) @ 1200 ÃÆâÃâÂ°C |
|Coefficient of Thermal Expansion ||4.02 x 10-6/ ÃÆÆÃââÃÆâÃâÂ°C |
